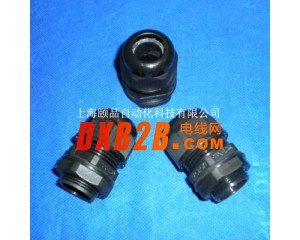

產品名稱：EPIN尼龍電纜接頭/電纜護套/電纜填料函；
產品材質：尼龍PA6，丁腈橡膠制成；
螺紋規格：公制（M）、德制（PG）、美制（NPT/G）
工作溫度：-40℃/＋100℃短時可達＋120℃；
產品顏色：黑色、灰色，其他顏色可訂制；
防護等級：配合O形密封圈達到IP68；
產品特性：電纜卡緊范圍大，抗拉強可防水防塵、耐酸堿、油脂及一般溶劑。
規格型號：規格齊全，M6-M75,Pg7-Pg48，G1/4"-G5"，NPT1/8"-NPT2"；
|
規格型號(M制) |
電纜卡口范圍(mm) |
GL螺紋長度(mm) |
H(mm) |
AG螺紋外徑(mm) |
M.M |
|
M12 * 1.5 |
3-6.5 |
8 |
20 |
12.0 |
15 |
|
M12 * 1.5 |
2-5 |
8 |
20 |
12.0 |
15 |
|
M16 * 1.5 |
4-8 |
8 |
22 |
16.0 |
19 |
|
M16 * 1.5 |
2-6 |
8 |
22 |
16.0 |
19 |
|
M16 * 1.5 |
5-10 |
8 |
24 |
16.0 |
22 |
|
M16 * 1.5 |
3-7 |
8 |
24 |
16.0 |
22 |
|
M20 * 1.5 |
6-12 |
9 |
27 |
20.0 |
24 |
|
M20 * 1.5 |
5-9 |
9 |
27 |
20.0 |
24 |
|
M20 * 1.5 |
10-14 |
10 |
28 |
20.0 |
27 |
|
M20 * 1.5 |
7-12 |
10 |
28 |
20.0 |
27 |
|
M25 * 1.5 |
13-18 |
11 |
30 |
25.0 |
33 |
|
M25 * 1.5 |
9-16 |
11 |
30 |
25.0 |
33 |
|
M32 * 1.5 |
18-25 |
11 |
38 |
32.0 |
42 |
|
M32 * 1.5 |
13-20 |
11 |
38 |
32.0 |
42 |
|
M40 * 1.5 |
22-32 |
13 |
45 |
40.0 |
53 |
|
M40 * 1.5 |
20-26 |
13 |
45 |
40.0 |
53 |
|
M50 * 1.5 |
32-38 |
13 |
47 |
50.0 |
60 |
|
M50 * 1.5 |
25-31 |
13 |
47 |
50.0 |
60 |
|
M63 * 1.5 |
37-44 |
14 |
47 |
63.0 |
65 |
|
M63 * 1.5 |
29-35 |
14 |
47 |
63.0 |
65 |
|
規格型號(Pg制) |
電纜卡口范圍(mm) |
GL螺紋長度(mm) |
H(mm) |
AG螺紋外徑(mm) |
M.M |
|
PG7 |
3-6.5 |
8 |
21 |
12.5 |
15 |
|
PG7 |
2-5 |
8 |
21 |
12.5 |
15 |
|
PG9 |
4-8 |
8 |
22 |
15.2 |
19 |
|
PG9 |
2-6 |
8 |
22 |
15.2 |
19 |
|
PG11 |
5-10 |
8 |
25 |
18.6 |
22 |
|
PG11 |
3-7 |
8 |
25 |
18.6 |
22 |
|
PG13.5 |
6-12 |
9 |
17 |
20.4 |
24 |
|
PG13.5 |
5-9 |
9 |
17 |
20.4 |
24 |
|
PG16 |
10-14 |
10 |
28 |
22.5 |
27 |
|
PG16 |
7-12 |
10 |
28 |
22.5 |
27 |
|
PG21 |
13-18 |
11 |
31 |
28.3 |
33 |
|
PG21 |
9-16 |
11 |
31 |
28.3 |
33 |
|
PG29 |
18-25 |
11 |
39 |
37.0 |
42 |
|
PG29 |
13-20 |
11 |
39 |
37.0 |
42 |
|
PG36 |
22-32 |
13 |
48 |
47.0 |
53 |
|
PG36 |
20-26 |
13 |
48 |
47.0 |
53 |
|
PG42 |
32-38 |
13 |
48 |
52.5 |
60 |
|
PG42 |
25-31 |
13 |
48 |
52.5 |
60 |
|
PG48 |
37-44 |
14 |
49 |
59.3 |
65 |
|
PG48 |
29-35 |
14 |
49 |
59.3 |
65 |
|
規格型號(NPT) |
電纜卡口范圍(mm) |
GL螺紋長度(mm) |
H(mm) |
M.M |
|
3/8"NPT |
4-8 |
15 |
22 |
22/19 |
|
3/8"NPT |
2-6 |
15 |
22 |
22/19 |
|
1/2"NPT |
6-12 |
13 |
27 |
24 |
|
1/2"NPT |
5-9 |
13 |
27 |
24 |
|
1/2"NPT |
10-14 |
13 |
28 |
27 |
|
1/2"NPT |
7-12 |
13 |
28 |
27 |
|
3/4"NPT |
13-18 |
13 |
30 |
33 |
|
3/4"NPT |
9-16 |
13 |
30 |
33 |
|
1"NPT |
18-25 |
19 |
38 |
42 |
|
1"NPT |
13-20 |
19 |
38 |
42 |
|
1-1/4"NPT |
18-25 |
16 |
38 |
46/42 |
|
1-1/4"NPT |
13-20 |
16 |
38 |
46/42 |
|
1-1/2"NPT |
22-32 |
20 |
45 |
53 |
|
1-1/2"NPT |
20-26 |
20 |
45 |
53 |
