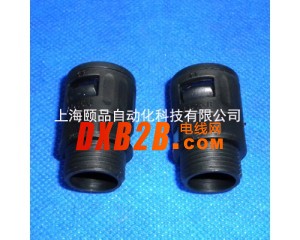

產品名稱：尼龍軟管快速直接頭

產品材質：尼龍PA6；
螺紋規格：公制螺紋，德制螺紋；
工作溫度：-40℃到+110℃；
產品顏色：黑色和灰色，其他顏色可定做；
產品特性：內鎖扣和本體特殊設計，裝卸快速方便，只需拔插，無需工具；
使用方法：軟管接頭是軟管的配套產品，可接入設備箱體上，
也可以根據選用螺紋接入進出口為內螺紋的電動設備上，只需軟管插入接口即可。

EPIN-M 公制螺紋 Metric Thread Straight Connector
適配軟管	螺紋規格	Φl	ΦB	C	D	E	ΦF
Fits to	Thread	ID	OD	Thread	Total	Total	Connection
Tubing size	Dimension	mm	mm	Length	Length	Height	mm
AD10.0	M10*1.0	7	17	11.5	34	33.5	16
	M12*1.5	8.5	17	11.5	34	33.5	16
AD13.0	M12*1.5	8	20	11.5	38.5	36	20
	M16*1.5	11	20	11.5	38.5	36	20
AD15.8	M16*1.5	12	23	12	43.5	40.5	23
	M18*1.5	14	23	12	43.5	40.5	23
AD18.5	M20*1.5	15.5	26	13	47.5	45	27
AD21.2	M20*1.5	15.5	29.5	13	51.5	48	27
	M22*1.5	18	29.5	13	51.5	48	27
	M24*1.5	18	29.5	13	51.5	48	27
	M25*1.5	18	29.5	13	51.5	48	27
AD28.5	M25*1.5	20.5	37	13	59	56	34
	M27*1.5	21.5	37	13	59	56	34
	M30*2.0	23.5	37	13	59	56	34
	M32*1.5	23.5	37	13	59	56	34
AD34.5	M32*1.5	25	44	15	70.5	65.5	43
	M33*2.0	25	44	15	70.5	65.5	43
	M36*1.5	31	44	15	70.5	65.5	43
	M40*1.5	31	44	15	70.5	65.5	43
AD42.5	M40*1.5	32	52	15	81	73.5	52
	M42*2.0	36	52	15	81	73.5	52
	M48*2.0	39	52	15	81	73.5	52
	M50*1.5	39	52	15	81	73.5	52
AD54.5	M50*1.5	43	64	16	91	86.5	68
	M56*2.0	48.5	64	16	91	86.5	68
	M60*1.5	48.5	64	16	91	86.5	68
	M63*1.5	48.5	64	16	91	86.5	68
	M64*2.0	48.5	64	16	91	86.5	68
EPIN-PG螺紋制 PG Thread Straight Connector
適配軟管	螺紋規格	Φl	ΦB	C	D	E	ΦF
Fits to	Thread	ID	OD	Thread	Total	Total	Connection
Tubing size	Dimension	mm	mm	Length	Length	Height	mm
AD10.0	PG7	8.5	17	11.5	34	33.5	16
AD13.0	PG9	11	20	11.5	38.5	36	20
AD15.8	PG11	14	23	12	43.5	40.5	23
AD18.5	PG13.5	15.5	26	13	47.5	45	27
AD21.2	PG16	18	29.5	13	51.5	48	27
AD28.5	PG21	23.5	37	13	59	56	34
AD34.5	PG29	31	44	15	70.5	65.5	43
AD42.5	PG36	36	52	15	81	73.5	52
AD54.4	PG48	48.5	64	15	91	86.5	68
EPIN-G 制螺紋G Thread Straight Connector
適配軟管	螺紋規格	Φl	ΦB	C	D	E	ΦF
Fits to	Thread	ID	OD	Thread	Total	Total	Connection
Tubing size	Dimension	mm	mm	Length	Length	Height	mm
AD10.0	G1/4"	8.5	17	11.5	34	33.5	16
AD13.0	G3/8"	11	20	11.5	38.5	36	20
AD15.8	G3/8"	12	23	12	43.5	40.5	23
	G1/2"	14	23	12	43.5	40.5	23
AD21.2	G1/2"	15.5	29.5	13	51.5	48	27
AD28.5	G3/4"	21.5	37	13	59	56	34
AD34.5	G1"	25	44	15	70.5	65.5	43
AD42.5	G1-1/4"	36	52	15	81	73.5	52
AD54.4	G1-1/2"	39	64	15	91	86.5	68
	G2"	48.5	64	15	91	65.5	68
