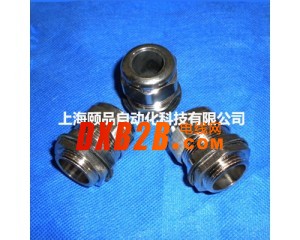

產品名稱：EPIN黃銅鍍鎳電纜接頭（EPIN Cable gland nickel-plated brass）
螺紋規格:公制(Metric)、PG制、G (PF / BSP / PS)制、NPT制。
產品材質:A.C.F部分以黃銅鍍鎳制成，E部分以UL認可之尼龍PA66制成(防火等級UL94V-2),BD部分采用EPDM耐候橡膠制成。
(可定制耐寒、耐高溫橡膠;耐高酸堿、耐化學與抗腐蝕橡膠)。
工作溫度:靜態-40℃至100℃,或瞬間可耐熱至120℃;（可定制-60℃至220℃）
產品特性:特殊夾緊爪與夾緊圈之設計，夾緊電纜范圍大，抗拉力特強，可防水、防塵、抗鹽、耐弱酸、酒精、油、油脂及一般溶劑。
|
螺紋規格 |
編號 |
電纜范圍 |
螺紋外徑 |
螺紋長度 |
扳手徑 |
包裝 |
|
M8 x 1.25 |
M8 -3.8 |
2-3.8 |
8 |
5.5 |
11/11 |
20 |
|
M10 x 1.5 |
M10 -5.5 |
2-6.5 |
10 |
6.5 |
14/14 |
20 |
|
M12 x 1.5 |
M12S-5.5 |
2-6.5 |
12 |
7 |
14/14 |
20 |
|
M12 -5.5 |
3-5.5 |
12 |
8 |
18/18 |
10 |
|
|
M12 -7.8 |
4.5-8 |
12 |
8 |
18/18 |
10 |
|
|
M16 x 1.5 |
M16S-5.5 |
3-5.5 |
16 |
9 |
18/18 |
10 |
|
M16S-7.8 |
4.5-8 |
16 |
9 |
18/18 |
10 |
|
|
M16 -7 |
4-7 |
16 |
9 |
22/22 |
10 |
|
|
M16 -10 |
6-10 |
16 |
9 |
22/22 |
10 |
|
|
M20 x 1.5 |
M20S-8.8 |
4-8.8 |
20 |
9.5 |
24/24 |
10 |
|
M20S-12.5 |
7-12.5 |
20 |
9.5 |
24/24 |
10 |
|
|
M20 -11 |
7-11 |
20 |
9.5 |
25/25 |
10 |
|
|
M20 -14 |
9-14 |
20 |
9.5 |
25/25 |
10 |
|
|
M25 x 1.5 |
M25S-11 |
7-11 |
25 |
12 |
25/25 |
10 |
|
M25S-14 |
9-14 |
25 |
12 |
25/25 |
10 |
|
|
M25 -16 |
12-16 |
25 |
12 |
30/30 |
10 |
|
|
M25 -18 |
14-18 |
25 |
12 |
30/30 |
10 |
|
|
M32 x 1.5 |
M32 -22 |
16-22 |
32 |
12.5 |
40/40 |
10 |
|
M32 -25 |
18-25 |
32 |
12.5 |
40/40 |
10 |
|
|
M40 x 1.5 |
M40 -26 |
21-26 |
40 |
15 |
50/50 |
10 |
|
M40 -31 |
24-31 |
40 |
15 |
50/50 |
10 |
|
|
M50 x 1.5 |
M50 -33 |
25-33 |
50 |
15 |
59/59 |
10 |
|
M50 -41 |
31-41 |
50 |
15 |
59/59 |
10 |
|
|
M63 x 1.5 |
M63 -45 |
35-45 |
63 |
17 |
69/69 |
5 |
|
螺牙規格 |
編號 |
電纜范圍 |
螺紋外徑 |
螺紋長度 |
扳手徑 |
包裝 |
|
PG7 |
PG7S-5.5 |
2-6.5 |
12.5 |
7 |
14/14 |
20 |
|
PG7 -5.5 |
3-5.5 |
12.5 |
8 |
18/18 |
10 |
|
|
PG7 -7.8 |
4.5-8 |
12.5 |
8 |
18/18 |
10 |
|
|
PG9 |
PG9 -5.5 |
3-5.5 |
15.2 |
8 |
18/18 |
10 |
|
PG9 -7.8 |
4.5-8 |
15.2 |
8 |
18/18 |
10 |
|
|
PG11 |
PG11-7 |
4-7 |
18.6 |
9 |
22/22 |
10 |
|
PG11-10 |
6-10 |
18.6 |
9 |
22/22 |
10 |
|
|
PG13.5 |
PG13.5-8.8 |
4-8.8 |
20.4 |
9.5 |
24/24 |
10 |
|
PG13.5-12.5 |
7-12.5 |
20.4 |
9.5 |
24/24 |
10 |
|
|
PG16 |
PG16-11 |
7-11 |
22.5 |
9.5 |
25/25 |
10 |
|
PG16-14 |
9-14 |
22.5 |
9.5 |
25/25 |
10 |
|
|
PG21 |
PG21-16 |
12-16 |
28.3 |
12 |
30/30 |
10 |
|
PG21-18 |
14-18 |
28.3 |
12 |
30/30 |
10 |
|
|
PG29 |
PG29-22 |
16-22 |
37 |
12.5 |
40/40 |
10 |
|
PG29-25 |
18-25 |
37 |
12.5 |
40/40 |
10 |
|
|
PG36 |
PG36-26 |
21-26 |
47 |
15 |
50/50 |
10 |
|
PG36-31 |
24-31 |
47 |
15 |
50/50 |
10 |
|
|
PG42 |
PG42-33 |
25-33 |
54 |
15 |
59/59 |
10 |
|
PG42-41 |
31-41 |
54 |
15 |
59/59 |
10 |
|
|
PG48 |
PG48-45 |
35-45 |
59.3 |
17 |
69/69 |
5 |
