[產品描述PRODUCT DESCRIPTION]
額定電壓:300V
溫度范圍:-20℃～+105℃
導體:鎳合金
絕緣體:聚氯乙烯
外徑公差:士0.15mm
顏色:黑-棕-紅-橙-黃-綠-藍-紫-灰-白-黃/綠等
線徑范圍：Φ1.5～Φ6.0MM
電阻范圍：0.1-10000Ω/M

[特性CHARACTERISTIC]
耐高/低溫，耐酸/堿,耐燃燒,老化,耐侯性,防霉以及優良的柔軟性,電絕緣性，滿足UL,ROHS的要求

[適用范圍APPLICATION]
適用于冰箱，冷柜，發熱制品，醫療器具，毛巾柜，按摩器，座墊加熱，保溫，除霜等組件．

*************************************************************************************

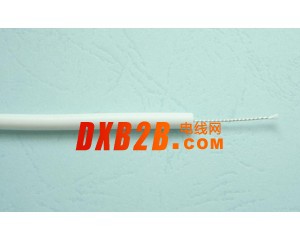

PVC HEATING WIRE
*Nominal Voitage:300V
*Temperature Range:-20℃～+105℃
*Conductor: Nickel alloy copper
*insulation: PVC
*O.D.Allowance: 士0.15mm
*Diameter Range:Φ1.5～Φ6.0MM
*Resister Range:0.1-10000Ω/M
*Aviable: Black-Brown-Red-Orange-Yellow-Green-Blue-Purple-Gray-White-Yellow/green,etc.

Resistance of high and low temperature anti-acid and alkail fire and aging resistance the inoxidizability resistance of humidity the fine electric insulation and flexible performance be qualified the standard of UL,ROHS.

Apply to the components of the refrigerating equipment the heating product the rice cooker,the massage gadget for the heating,the heat perservation and the defroster etc.,
