型號 |
價格 |
尺寸 |
||
|
W |
T |
H |
||
|

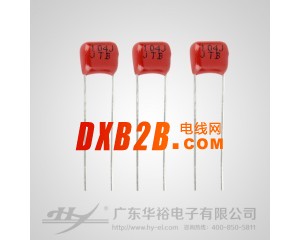

CL21X 473J63VF |
0.12 |
6.8 |
3.3 |
5.6 |
價格僅供參考，以報價單為準。
特點及用途/Features and Applications
采用超薄超窄的金屬化聚脂薄膜作介質
兩端面噴金形成無感結構
CP線單向引出
阻燃環(huán)氧樹脂粉末包封
體積小、重量輕，損耗小
自愈性好、可靠性高
適合于直流和脈動電路中
With thickness least and width less metallized polyester film dielectric
Twain section spray-metal form Non-inductive construction
Electrode with CP lead unilateralism fetch out and flame retardant
Epoxy resin powder coating
Small size, Light weight. Low dissipation factor
Excellent self-healing property and reliability
It is suitable for the DC and pulsating circuits
技術要求/Specifications
|
引用標準 Referedce Standard |
GB 7332（IEC 60384-2） |
|||
|
溫度范圍 Temperature range |
-40℃～+85℃ |
|||
|
額定耐壓 Rated Voltage |
50VDC.63VDC.100VDC.200VDC |
|||
|
容量范圍 Capacitance range |
0.0001μF to 1.0μF |
|||
|
容量偏差 Capacitance Tolerance |
±5%(J), ±10%(K) |
|||
|
損耗角正切 Dissipation factor |
1.0%max.(20℃ 1KHz) |
|||
|
耐電壓 Voltage proof |
1.6UR (5S) |
|||
|
絕緣電阻 Insulation resistance |
C≤0.33μF |
C＞0.33μF |
||
|
UR≤100V |
UR＞100V |
UR≤100V |
UR＞100V |
|
|
≥18000MΩ |
≥15000MΩ |
≥6000MΩ.μF |
≥5000MΩ.μF |
|
此產品關鍵字：
精密電容器、小型電容器、無感電容
