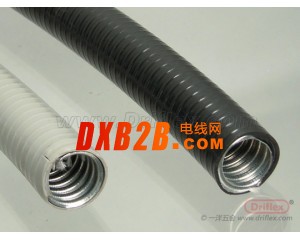

包棉紗防水金屬軟管
鍍鋅鐵皮制成,表面被覆耐延燒PVC材料.
極佳柔軟性及絕對防水效果.
吸收移動和震動的性能,多方向彎曲撓性.
3/8"至1-1/4"嵌入一棉紗填封,1-1/2"至4"以反扣結構制作.
耐溫范圍從-20度至+105度.
適合使用于油氣,水氣重之場所.
PVC包塑，有選擇黑色、灰色、橙色.
適合配套鐵鍍鋅接頭、銅鍍鎳、不銹鋼或鋅合金接頭。
| Part No | Nominal Size ISO (mm) | Nominal Size US (inches) | I.D. (mm) | O.D. (mm) | Min. Bend Radius (mm) | Length (M/coil) |
|---|---|---|---|---|---|---|
| LT-10 | 16 | 3/8" | 12.3 - 12.8 | 17.5 - 18.0 | 60 | 30 |
| LT-11 | 20 | 1/2" | 15.8 - 16.3 | 20.8 - 21.3 | 80 | 30 |
| LT-12 | 25 | 3/4" | 20.7 - 21.2 | 26.2 - 26.7 | 100 | 30 |
| LT-13 | 32 | 1" | 26.2 - 26.8 | 32.7 - 33.4 | 150 | 30 |
| LT-14 | 40 | 1-1/4" | 34.8 - 35.4 | 41.4 - 42.2 | 180 | 20 |
| LT-15 | 50 | 1-1/2" | 40.1 - 40.6 | 47.4 - 48.3 | 200 | 20 |
| LT-16 | 63 | 2" | 51.3 - 51.9 | 59.4 - 60.3 | 250 | 15 |
| LT-17 | 75 | 2-1/2" | 63.0 - 63.6 | 72.1 - 73.0 | 300 | 10 |
| LT-18 | 90 | 3" | 78.0 - 78.7 | 87.9 - 88.9 | 450 | 10 |
| LT-19 | 100 | 4" | 101.6 - 102.6 | 113.2 - 114.3 | 600 | 5 |
