Spherical Ball Lenses are mo
nly used for laser collimating and focusing, laser-to-fiber coupling, fiber-to-fiber coupling, and fiber-to-detector coupling. Larger spheres are easier to handle and ease the sensitivity of translatio
nal alignment. However, smaller spheres has the benefit of fitting into smaller packages.
Ball lenses are highly polished spheres made of optically transparent homogeneous materials. Carefully controlled manufacturing process produces spheres with precise diameters and unsurpassed surface quality.

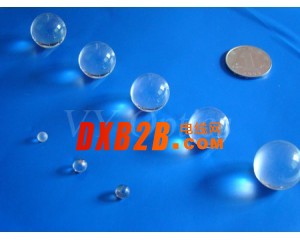

We supply optical spherical ball lens
Specifications:
Material: BK7, LaSFN9 glass or other optical glass
Sphericity: /4 at 633nm
Surface Quality: 20-10
Diameter: 1m
Coating (optional): R<1.5% avg per surface, 400-700nm at 0angle of incidence
