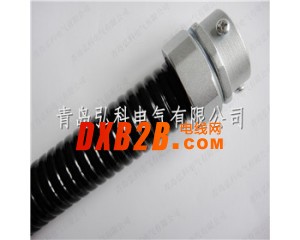

| WS 不銹鋼波浪包塑型軟管 Stainless steel waved plastic coated hose | |||||||
 |
顏 色：黑色、灰色 溫度范圍：-30℃~+110℃ 材 質：內部不銹鋼帶，外層PVC披覆 特 性：●內部鋼帶為單扣型，彎曲性能好 ●外層PVC，添加防火阻燃劑，防老化 說 明：其他規格可依要求定制 |
||||||
| 青島弘科電氣有限公司，www.honcul.com 李先生，13687658273 QQ：2458619691 |
|||||||
| 型號Item No. | 規格Spec | 內徑 (mm) |
外徑 (mm) |
彎曲半徑（mm） | 單位包裝（m/Roll） | ||
| 黑色 Black | 灰色 Grey | 公制 Metric |
英制 Inch |
||||
| WSB006 | WSG006 | Φ6 | 3/16" | 5.7-6.0 | 8.9-9.2 | 40 | 100 |
| WSB008 | WSG008 | Φ8 | 1/4" | 7.8-8.1 | 12.0-12.3 | 45 | 100 |
| WSB010 | WSG010 | Φ10 | 5/16" | 9.7-10.0 | 14.0-14.3 | 55 | 50 |
| WSB012 | WSG012 | Φ12 | 3/8" | 12.3-12.6 | 16.5-16.8 | 60 | 50 |
| WSB015 | WSG015 | Φ15 | 1/2" | 15.7-16.0 | 20.5-20.8 | 80 | 50 |
| WSB020 | WSG020 | Φ20 | 3/4" | 19.7-20.0 | 25.3-25.6 | 100 | 50 |
| WSB025 | WSG025 | Φ25 | 1" | 25.3-25.8 | 30.7-31.2 | 120 | 50 |
| WSB032 | WSG032 | Φ32 | 1-1/4" | 32.3-32.8 | 38.5-39.0 | 150 | 25 |
| WSB038 | WSG038 | Φ38 | 1-1/2" | 38.3-38.8 | 45.7-46.2 | 180 | 25 |
| WSB051 | WSG051 | Φ51 | 2" | 50.0-50.5 | 58.8-59.3 | 220 | 20 |
| WSB064 | WSG064 | Φ64 | 2-1/2" | 62.5-63.2 | 73.5-74.0 | 310 | 10 |
| WSB075 | WSG075 | Φ75 | 3" | 73.0-73.7 | 84.5-85.2 | 350 | 10 |
| WSB100 | WSG100 | Φ100 | 4" | 97.5-98.5 | 109.5-110.5 | 410 | 10 |
點擊圖片查看原圖
